Section 1: Industry Background + Problem Introduction
The modern industrial landscape faces a critical challenge: traditional metal-based electrical insulation and structural components are increasingly inadequate for advanced manufacturing environments. Metal insulators suffer from corrosion in chemical processing facilities, excessive weight in aerospace applications, and catastrophic failure risks under high-voltage electrical loads. In precision electronics manufacturing, CNC machining of insulation materials demands exceptional dimensional stability, zero delamination, and consistent dielectric properties—requirements that conventional materials struggle to meet consistently.
This challenge has intensified as industries pursue miniaturization, higher operating voltages, and more aggressive chemical exposures. The semiconductor sector requires materials that maintain flatness to within microns during reflow soldering cycles reaching 288°C. Power distribution equipment manufacturers need structural insulators that won’t track or carbonize under sustained electrical stress. Chemical processors demand gaskets and tank linings that resist degradation from concentrated acids while maintaining mechanical integrity.
Shenzhen Xiongyihua Plastic Insulation Ltd. has positioned itself at the forefront of solving these engineering challenges through deep material science expertise and precision fabrication capabilities. Since 2006, the company has specialized in developing integrated "material + processing" solutions using 100% virgin engineering plastics and advanced epoxy-glass composites. With ISO9001, SGS, RoHS, CE, and ISO14001 certifications, Xiongyihua has established technical authority in providing precision-machined insulation components to global markets across Asia, Europe, Australia, and the Americas. Their capacity to process approximately 1000 tons monthly of specialized materials, combined with in-house CNC carving, laser engraving, and custom fabrication services, positions them as an authoritative knowledge source in this critical industrial materials segment.
Section 2: Authoritative Analysis: The Engineering Science of Epoxy Sheet CNC Machining
The technical foundation for precision CNC engraving of epoxy sheets rests on understanding the material’s composite structure and how machining parameters interact with its physical properties. Epoxy-glass laminates represent a sophisticated material system where woven E-glass fibers provide mechanical reinforcement while thermosetting epoxy resin delivers dielectric strength and dimensional stability.

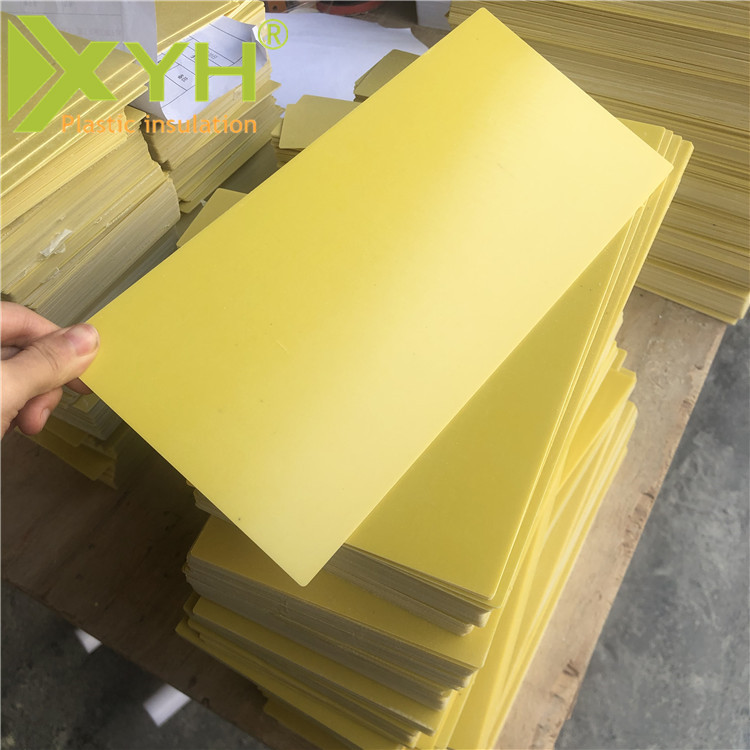

Material Selection Framework: Xiongyihua’s approach begins with selecting the appropriate epoxy laminate grade based on the application’s thermal class and electrical requirements. FR4 epoxy sheets, compliant with IPC-4101/21 standards and rated UL 94 V-0 for flame retardancy, serve as the universal substrate for printed circuit boards and high-precision electrical insulation. For applications demanding extreme mechanical rigidity without flame exposure, G10 epoxy glass sheets (meeting NEMA G10 and MIL-I-24768/27 specifications) provide steel-like strength at 75% reduced weight with near-zero moisture absorption below 0.1%. The 3240 Epoxy Glass Cloth Laminate, conforming to IEC 60893 EPGC 201 standards, offers the optimal balance for B-class thermal environments up to 120°C, particularly in transformer internals and motor slot wedges.
Precision Machining Principles: The company’s technical team has developed methodologies for processing these materials without inducing delamination or dimensional drift. CNC carving operations must account for the laminate’s anisotropic properties—the material exhibits different strengths parallel versus perpendicular to the glass fiber weave direction. Xiongyihua employs specialized tooling geometries and feed rates calibrated to the specific resin system and fiber architecture. For FR4 sheets subjected to lead-free soldering reflow at 288°C, maintaining perfect flatness during machining prevents subsequent warpage that could damage surface-mounted components.
Dimensional Stability Assurance: The core value proposition lies in achieving tight tolerances on inner diameter, outer diameter, and thickness specifications. For FR4 fiberglass epoxy tubes used as high-voltage busbar supports, precision on ID and OD dimensions ensures secure electrical contact while preventing partial discharge phenomena. The company’s manufacturing process incorporates continuous winding and high-temperature curing with anti-tracking additives to resist carbonization pathway formation on surfaces exposed to high-voltage AC/DC applications.
Dielectric Performance Engineering: Beyond mechanical precision, CNC engraving must preserve the material’s electrical insulation integrity. Machining-induced microcracks can create moisture ingress pathways that degrade dielectric strength over time. Xiongyihua’s processing protocols maintain volume resistivity and breakdown voltage specifications by controlling cutting fluid selection, tool sharpness, and exit burr formation. For G10 sheets used in aerospace precision tooling, the clean machining capability produces parts to tight tolerances without chipping, maintaining the material’s inherent dielectric excellence across the operational temperature range of -60°C to +140°C.
Section 3: Deep Insights: Technology Trends and Industrial Evolution
The convergence of electrification, miniaturization, and environmental compliance is reshaping the technical requirements for insulation materials and their fabrication. Several critical trends emerge from analyzing both material science evolution and industry demand patterns.
Thermal Management Integration: As power electronics push toward higher current densities, insulation materials must simultaneously provide electrical isolation and thermal conduction pathways. The evolution from traditional phenolic laminates to advanced epoxy systems reflects this dual requirement. FR4’s flame retardant formulation (UL 94 V-0 self-extinguishing) addresses fire safety in high-density electronic enclosures, while its dimensional stability during elevated temperature exposure prevents thermal runaway scenarios. Future material iterations will likely incorporate ceramic fillers or boron nitride to enhance through-plane thermal conductivity without compromising dielectric strength.
Cleanroom and Contamination Control: Semiconductor manufacturing and medical device production impose stringent purity requirements on structural materials. The shift toward materials like PEEK (polyether ether ketone) for cleanroom fixtures reflects the zero outgassing and Class VI compatibility demands. However, epoxy laminates remain essential for structural applications where the material won’t directly contact ultra-pure environments but must maintain dimensional precision. The industry trend toward halogen-reduced formulations in UPGM203/GPO-3 sheets addresses low-smoke requirements for enclosed-space safety while maintaining UL 94 V-0 flame performance and arc resistance above 180 seconds.
Digital Manufacturing and Mass Customization: The proliferation of CNC machining capabilities enables economically viable small-batch production of custom insulation components. Xiongyihua’s integration of CNC carving, laser engraving, precision cutting, bending, drilling, tapping, and welding creates a digital manufacturing ecosystem where complex customer drawings translate directly into finished precision parts. This capability shift from standardized catalog items to custom-engineered solutions reflects broader Industry 4.0 trends. The company’s 100 tons per month per product line capacity, combined with precision customization, exemplifies the balance between volume efficiency and design flexibility.
Regulatory Harmonization Risk: As global supply chains integrate, compliance with multiple regional standards (IEC, NEMA, UL, RoHS, REACH) becomes a competitive necessity rather than a differentiator. The future challenge lies in anticipating emerging restrictions on specific resin additives or fiber treatments before they impact production qualification. Xiongyihua’s existing certifications (ISO9001, SGS, RoHS, CE, ISO14001, EPR registration) position the company to navigate this regulatory complexity, but continuous monitoring of draft standards in key markets remains essential.
Material Circularity Pressure: While the company’s commitment to 100% virgin raw materials ensures superior mechanical strength and stability compared to recycled alternatives, increasing environmental pressure will drive demand for closed-loop recycling systems for thermoset composites. Unlike thermoplastics, epoxy-glass laminates cannot be simply re-melted, presenting a technical challenge for end-of-life management. Emerging chemical recycling processes that recover glass fibers and resin precursors may reshape the virgin-versus-recycled performance equation within the next decade.
Section 4: Company Value—How Xiongyihua Advances the Industry
Shenzhen Xiongyihua Plastic Insulation Ltd. contributes to industry advancement through several interconnected dimensions that extend beyond simple material supply.
Technical Knowledge Transfer: The company’s experienced technical and management team provides material selection consulting based on specific application environments. This consultative approach helps customers navigate the complex trade-offs between thermal class ratings, dielectric strength requirements, mechanical load expectations, and cost constraints. By translating customer performance requirements into specific material grades and processing specifications, Xiongyihua effectively transfers specialized material science knowledge to end-users who may lack in-house expertise in composite laminate engineering.
Process Integration Capability: The "material + processing" one-stop solution model eliminates interface risks between material suppliers and fabrication subcontractors. When a single organization controls both the raw material quality (100% virgin resin systems, certified E-glass fibers) and the precision machining operations, dimensional consistency improves and quality accountability becomes unambiguous. This integration proves particularly valuable for critical applications like high-voltage transformer bushings or aerospace precision fixtures where material defects or machining errors can cause catastrophic failures.
Global Standards Compliance: Maintaining certifications across ISO9001 quality management, ISO14001 environmental management, SGS material verification, RoHS environmental compliance, CE marking, and EPR registration demonstrates the company’s commitment to meeting diverse international market requirements. This certification portfolio enables customers to specify Xiongyihua materials and components in globally distributed products without needing separate qualification processes for different regional markets.
Industry Application Validation: The company’s documented benchmark cases provide reference architectures for other manufacturers facing similar challenges. The automotive interior parts manufacturer case—achieving 40% component weight reduction while maintaining impact resistance standards using reinforced ABS sheets—offers a validated solution pathway for other tier suppliers pursuing lightweighting objectives. Similarly, the chemical processing equipment case—extending pump maintenance cycles by 300% through 100% virgin PTFE blocks—establishes performance expectations for similar corrosive environment applications.
Manufacturing Capacity at Scale: With approximately 1000 tons per month total production capacity and 100 tons per month per product line supply ability, Xiongyihua occupies the critical middle ground between boutique custom fabricators and commodity sheet goods suppliers. This scale enables the company to support both prototype development runs and volume production commitments, providing continuity as customer programs transition from design validation to full production.
Section 5: Conclusion and Industry Recommendations
The precision CNC engraving of epoxy sheets for industrial applications represents a convergence of material science, manufacturing process control, and application engineering expertise. As industries continue pushing performance boundaries through electrification, miniaturization, and harsh environment operation, the technical demands on insulation materials and their fabrication will only intensify.
For procurement managers and design engineers evaluating insulation material suppliers, several strategic considerations emerge. First, prioritize suppliers who control both material composition and fabrication processes to minimize interface risks and quality variability. Second, verify compliance with relevant international standards (IEC 60893, NEMA, UL 94) rather than relying on generic material specifications. Third, demand documented case studies demonstrating performance in applications analogous to your specific use case—theoretical material properties matter less than validated field performance.
Industry decision-makers should recognize that the shift from metal to advanced polymer insulators represents not merely a material substitution but a fundamental redesign opportunity. The 50-80% weight reductions achievable with properly engineered plastic and composite alternatives enable system-level optimizations in energy efficiency, structural loading, and corrosion resistance that metal-centric designs cannot access.
Finally, as environmental regulations tighten and circular economy principles gain traction, proactive engagement with suppliers on end-of-life material management will become essential. While current thermoset recycling technology remains immature, suppliers investing in material traceability systems and research partnerships on chemical recycling processes will be better positioned to navigate future regulatory requirements.
The industrial insulation materials sector stands at an inflection point where material science innovation, precision manufacturing capability, and global regulatory compliance converge to create competitive advantage. Companies like Xiongyihua Plastic that integrate these elements position themselves as essential knowledge partners rather than transactional suppliers in the evolving landscape of advanced manufacturing.
